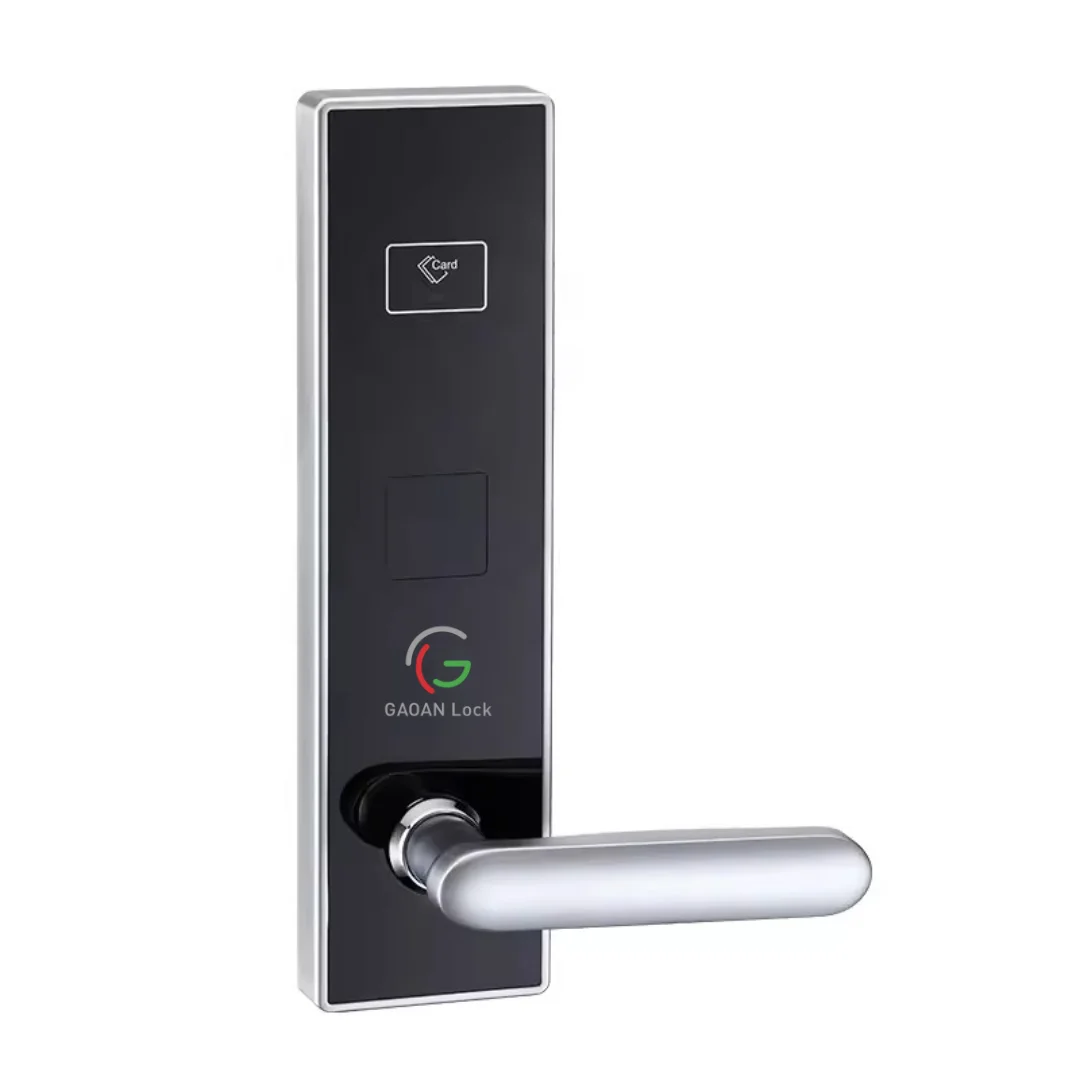

Gaoan WiFi RFID Hotel Door Lock – Model SL003 WiFi–S
The Gaoan WiFi Door Lock (Model SL003 WiFi–S) represents the next generation of smart hotel locking solutions, combining WiFi connectivity, RFID technology, and advanced security engineering into a sleek, stainless-steel design. Developed by Gaoan Lock, a trusted name in hospitality access systems, this lock ensures seamless control, high performance, and superior durability for hotels, resorts, and serviced residences.
Crafted with premium stainless steel and finished with a PVD treatment to prevent fading and corrosion, the Gaoan WiFi Lock blends cutting-edge functionality with modern aesthetics. Its five-latch motorized lock and ANSI-standard stainless steel mortise guarantee robust protection, while the WiFi-enabled management system allows for efficient and secure control of guest access and room operations.
Key Benefits of Gaoan WiFi RFID Hotel Door Lock
Smart WiFi Integration: Enables centralized hotel room management through a WiFi-based control system.
Durable Stainless-Steel Body: Built with high-grade stainless steel and PVD anti-fade finish for long-lasting performance.
Energy Efficient: Operates on 4 AA batteries lasting 8–12 months under normal usage conditions.
Advanced Security: Features a five-latch motorized lock, inside deadbolt, and privacy lock function for maximum protection.
Multi-Access Unlocking: Supports RFID card and mechanical key for flexibility and emergencies.

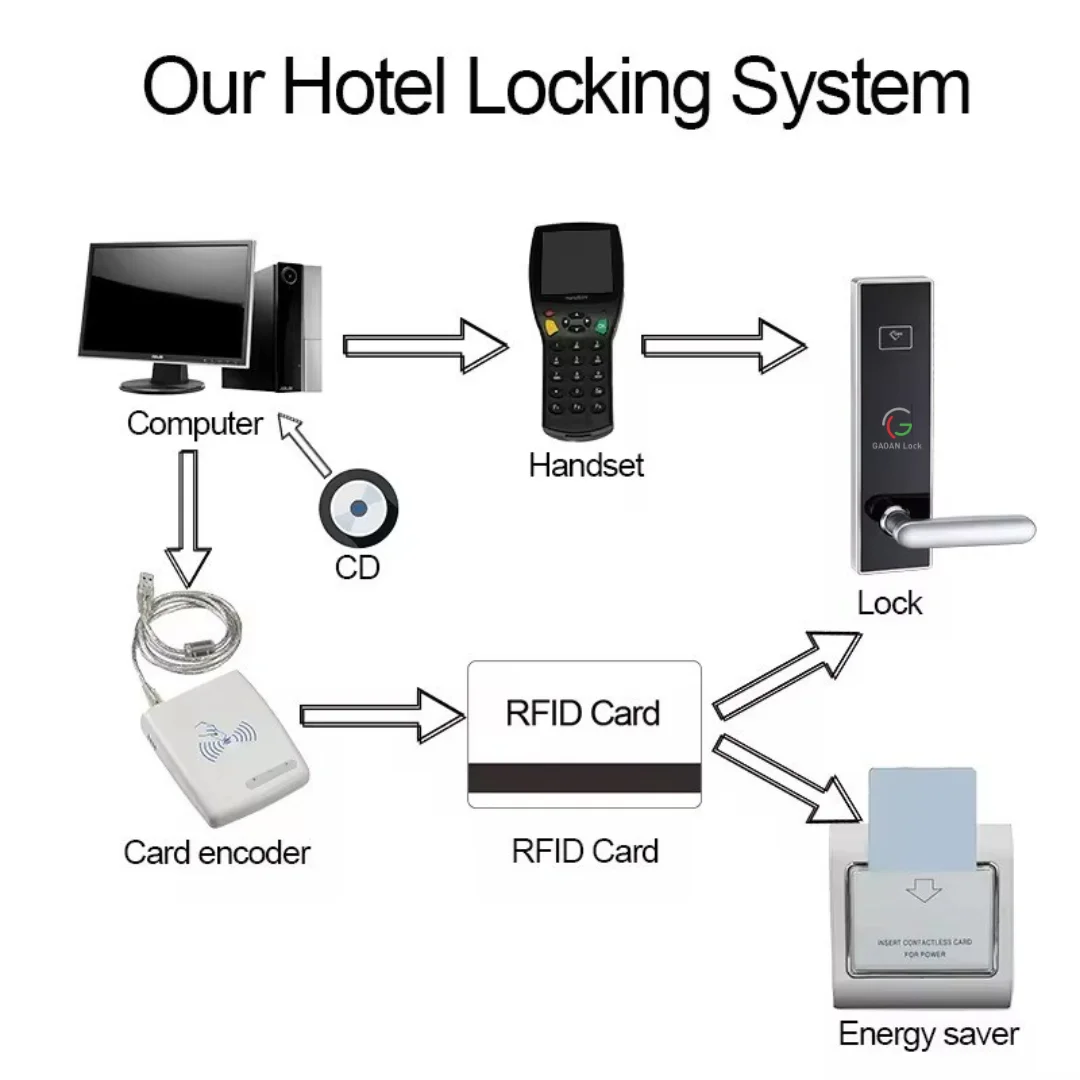

Humanized Management System: Integrated with a smart hotel management interface for easy monitoring, data collection, and record printing.
Technical Specifications
| Feature | Description |
| Brand Name | Gaoan Lock |
| Model Number | SL003 WiFi–S (Silver Finish) |
| Lock Model | WiFi–S |
| Material | Stainless Steel |
| Finish | PVD anti-fade treatment |
| Power Supply | DC6V, 4 × 1.5V AA alkaline batteries |
| Battery Life | 8–12 months under normal use |
| Lock Type | Five-latch motorized lock |
| Card Type | TEMIC 5557 RFID Card |
| Inside Deadbolt | Yes |
| Low Battery Warning | Red LED & alarm sound when voltage <4.8V |
| Voltage at Warning | Allows ~100 openings after low voltage alert |
| Locking/Unlocking Record | Printable via data collector |
| Management System | WiFi-enabled hotel management system |
| Door Thickness Requirement | ≥35 mm |
| Door Opening Direction | Right or Left |
| Working Temperature | -35°C to 65°C |
| Working Humidity | 15%–95% RH |
| Static Power Consumption | ≤10uA |
| Dynamic Power Consumption | ≤200mA |
| Weight | 3 kg |
| Mortise Lock Case Material | Stainless Steel |
| Deadbolt Operation | Retractable by inside lever at all times |
| Emergency Unlock | Mechanical key override |
| Level Management | Management card for time, code, and authorization settings |
| Privacy Function | Inside privacy deadbolt – override only by emergency access |
| Installation | Drill and screw fastening, easy setup |
The Gaoan WiFi RFID Door Lock (SL003 WiFi–S) is ideal for:
Luxury Hotels & Resorts – Centralized access control and guest management via WiFi.
Serviced Apartments – Secure and modern keyless access for residents.
Corporate Offices – Smart access system for employee and visitor management.
Hospitality Suites & Villas – Elegant and reliable security solution for premium spaces.
Why Choose the Gaoan WiFi RFID Door Lock
The Gaoan WiFi Door Lock is more than just a lock — it’s a smart, connected, and efficient access control system designed for the modern hospitality industry. With WiFi connectivity, real-time access management, and long-lasting stainless-steel durability, it ensures both security and convenience for hotels and guests alike.
Whether you’re upgrading to a WiFi-based hotel locking system or seeking a future-ready access control solution, the Gaoan WiFi Lock delivers unmatched performance, style, and reliability — making it a must-have for every modern property.
